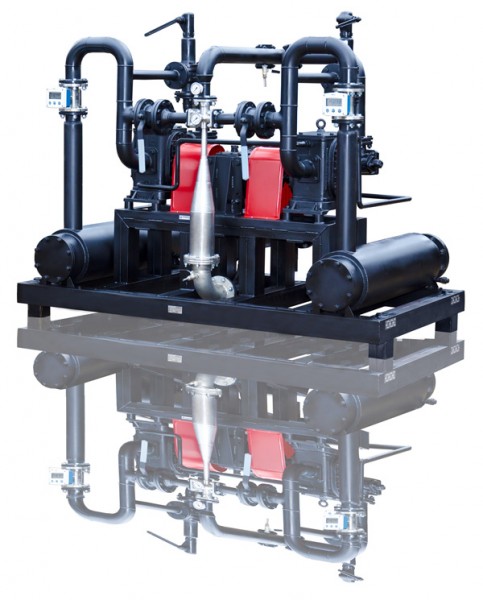

Fuel oil blending system

fuel-blending-process

Mixing (blending) of bunkering fuel oil using USB system. USB bunkering fuel oil mixers there are on oil barges, on piers, on the coast or in containers allow to make operators any type of fuel with the very precisely given a task viscosity and volume.

Currently bunkering terminals and parks introduce stream mixing as a key component of the work. Modern mixers, with control of a ratio or quality adjustment, can increase flexibility, reduce capital investments in mixed product and reduce mixes production time.

Correctly adjusted and installed hydrodynamic blender can become heart of the successful enterprise for mixing of bunkering fuel oils, giving opportunity to give the wide product range on demand directly to barges, pipelines or on storage. Production on the basis of commodity oil products (high-quality gasolines different grades with different octane number, biofuel, diesel, oil, corresponding to European standards

The GlobeCore Blending company has the huge long-term experience in development, production, of fuel oil blending systems for terminals and parks worldwide. Wide experience of GlobeCore Blending in commissioning and teams of engineers, give to operators confidence that the decision will be found for each concrete situation.

Advantages of hydrodynamic cavitation systems

• Low power consumption;

• High power of cavitation and acoustic influence;

• Low cost of received cavitational and acoustic energy;

• Simplicity of operation;

• High technological effectiveness in hardware registration;

• It is projected on any productivity;

• Combine technological operations;

• Simplifies hardware registration of processes;

• It is easily aggregated with highly reverse drives;

• Small metal consumption;

• Technological adjustability with optimum parameters.

Technical specifications of the most popular blending systems

Value

USB-18/3

USB-18/5

USB-20/3

USB-60/3

USB-60/5

USB-100/4

USB-100/5

Productivity, m³/hour

18

18

20

60

60

100

100

Mixed liquids amount

2…3

2…5

2…3

2…3

2…5

2…3

2…5

Main component consumption, m³/hour

17

11

13

57

50

100

100

Additives consumption, m³/hour
  • Additive #1

0,25…2,5

2…7

0,25…2,5

0,5…3,5

0,1…1,0

0,4…4

0,4…4

  • Additive #2

0,1…1,0

0,5…3,5

0,1…1,0

0,1…1,0

0,0…0,02

0,4…4

0,4…4

  • Additive #3

0,5…3,5

0,25…2,5

2,5…25

0,05…0,5

  • Additive #4

0,15..0,65

0,5..6,3

2,5…25

Fuel given pressure to installation, mPa

0,8

0,8

0,8

0,8

0,8

0,8

0,8

Power consumption, kW

15

15

15

36

36

55

55

Height of mix lifting, m

up to 15

up to 15

up to 15

up to 15

up to 15

up to 15

up to 15

Overall dimensions, mm
  • length

500

500

500

700

1000

2000

2000

  • width

500

600

500

1200

1500

1400

1400

  • height

1500

1500

1500

1550

1850

2200

2200

Weight, kg

130

170

185

450

750

1450

1540

If you want to reduce expenses of you company for fuel production, “USB” cavitation blending system could help you to do that. To receive extra information contact us and technical manager will call you back or download inquiry list and receive free catalog.
