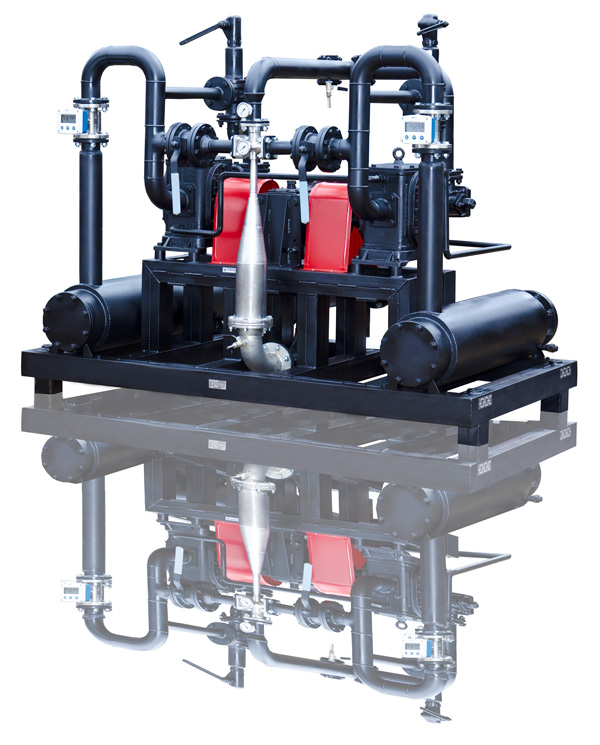

Low-viscous, viscous and high-viscous fuel low-viscous residual oil blending system USB-60/2
This system is intended mainly for treatment of high-viscous medium of black oil and crude oil as well.
The Unit is equipped with the high-tolerance additives batching electronic system with digital display, allowing to set the additives dosing extremely accurate.
Besides the Unit is able to treat the fuels both without any additives to achieve the fuel stability and using water (for producing of water-oil emulsions) or other components and additives. It can be also applied both for emulsification additives blending and for demulsification reagents introduction (e.g. for water removing from crude oil).
Features:
– BLACK OIL, DIESEL FURNACE OIL, GASOLINE SAVING;
– WATER-FUEL EMULSIONS PRODUCTION;
– BURNING OF BLACK OIL WITH WATER;
– BURNING OF CHEMICAL RECOVERY BLACK OIL;
– MIXING OF MULTICOMPONENT FUELS;
– MIXING OF BIODIESEL WITH OTHER FUEL COMPONENTS;
– PRELIMINARY OIL PROCESSING IN ORDER TO REDUCE THE TRANSPORTTATION COSTS;
– INCREASING OF OUTPUT FLUIDITY OF THE LIGHT PETROCHEMICALS DURING OIL REFINING
Specifications
| Parameters | USB5/5 | USB18/3 | USB18/5 | USB40/3 | USB60/3 | USB60/5 | USB100/3 | USB200/5 |
| Capacity, m³/h | 5 | 18 | 18 | 40 | 60 | 60 | 100 | 200 |
| Number of additives | 2-5 | 2-3 | 2-5 | 2-3 | 2-3 | 2-5 | 2-3 | 2-5 |
| Main component consumption, m³/h | 3.5 | 11 | 11.5 | 30 (37) | 50 (57) | 50 | 100 | 200 |
| Additive volume, m³/hFlowmeter 1*
Flowmeter 2* Flowmeter 3* Flowmeter 4* |
0.1-1.0
0.5–3.5 0.5–3.5 0.15–0.65 |
0.25–2.5
0.1–1.0 – – |
2-7
0.5–3.5 0.5–3.5 0.15–0.65 |
0.5–3.5
0.1–1.0 – – |
0.5 – 3.5
0.1 – 1.0 – – |
0.1–1.0
0.01–0.02 0.25–2.5 0.5–6.3 |
0.4 – 4
0.4 – 4 – – |
1.6- 16
0.6- 6 1.0 – 10 2.5 – 25 |
| Fuel Inlet Pressure, MPa | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Power Consumption, kW | 2.7 | 15 | 18 | 36 | 45 | 45 | 55 | 100 |
| Delivery head, m, max | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Dimensions, mmLength**
Width** Height** |
500
300 1300 |
500
500 1500 |
500
600 1500 |
700
1200 1550 |
700
1200 1550 |
1000
1500 1850 |
2000
1400 2200 |
2500
1800 2500 |
| Weight, kg | 130 | 330 | 370 | 450 | 550 | 750 | 1450 | 2200 |
* – flow meters range to be advised depending on finish product recipe
** – dimensions can vary depending on customized components (please fill in our questionnaire before ordering)
