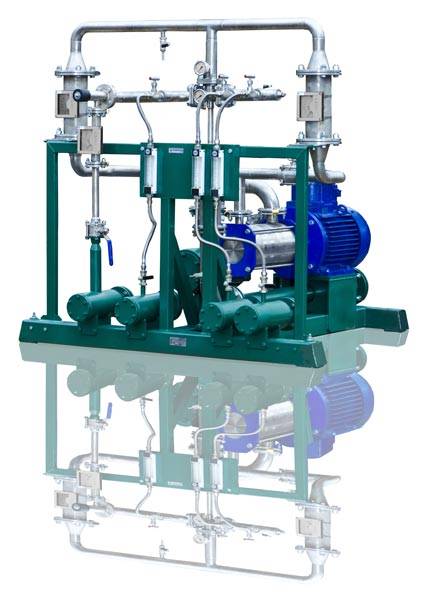

Gasoline, diesel fuel blending system USB-2/20/4

Gasoline, diesel fuel blending system USB-2/20/4

This blending system can be applied for mixing simultaneously of two main components and four types of additives. This Unit can be applied both for producing of blended gasolines and for producing of winter and arctic fuels by introduction of pour-point depressants and antigel additives.

Unit capacity on the main components is 20 m3/hour, accordingly depending on percentage batching of additives final Unit capacity can make from 22 till 30 m3/hour. Adjustment of the main components can also be made.

Convenience of this system is in its versatility in its application due to use of two main components simultaneously, thus every component can be dosed out in the ratio one to another.

Specifications

Parameters USB5/5 USB18/3 USB18/5 USB40/3 USB60/3 USB60/5 USB100/3 USB200/5
Capacity, m³/h 5 18 18 40 60 60 100 200
Number of additives 2-5 2-3 2-5 2-3 2-3 2-5 2-3 2-5
Main component consumption, m³/h 3.5 11 11.5 30 (37) 50 (57) 50 100 200
Additive volume, m³/hFlowmeter 1*Flowmeter 2*Flowmeter 3*Flowmeter 4* 0.1-1.00.5–3.50.5–3.50.15–0.65 0.25–2.50.1–1.0– 2-70.5–3.50.5–3.50.15–0.65 0.5–3.50.1–1.0– 0.5 – 3.50.1 – 1.0– 0.1–1.00.01–0.020.25–2.50.5–6.3 0.4 – 40.4  – 4– 1.6- 160.6- 61.0 – 102.5 – 25
Fuel Inlet Pressure, MPa 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Power Consumption, kW 2.7 15 18 36 45 45 55 100
Delivery head, m, max 10 10 10 10 10 10 10 10
Dimensions, mmLength**Width**Height** 5003001300 5005001500 5006001500 70012001550 70012001550 100015001850 200014002200 250018002500
Weight, kg 130 330 370 450 550 750 1450 2200

* – flow meters range to be advised depending on finish product recipe

** – dimensions can vary depending on customized components (please fill in our questionnaire before ordering)
