Gasoline, diesel fuel blending system USB-18/5

Gasoline, diesel fuel blending system USB-18/5

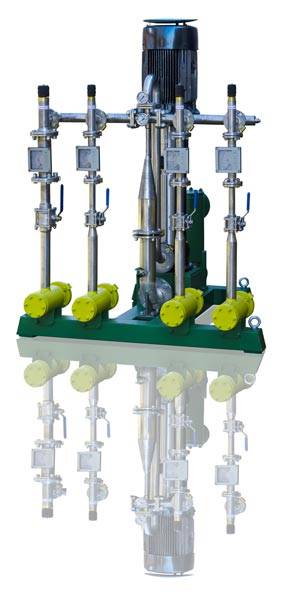

This fuel blending system is able to mix simultaneously 2-5 components. The main purpose and application of the Unit – producing of compound multicomponent fuels (the more components have been mixed – the better is quality of the end-product). Unit capacity on the main component is 18 m3/hour.

This unit type is equipped with the vertical multistage pump unit made by “Grundfos”.

This type units are the most demanded on the market, the maximum number of the produced models were this type ones.

Specifications

Parameters USB5/5 USB18/3 USB18/5 USB40/3 USB60/3 USB60/5 USB100/3 USB200/5
Capacity, m³/h 5 18 18 40 60 60 100 200
Number of additives 2-5 2-3 2-5 2-3 2-3 2-5 2-3 2-5
Main component consumption, m³/h 3.5 11 11.5 30 (37) 50 (57) 50 100 200
Additive volume, m³/hFlowmeter 1*Flowmeter 2*Flowmeter 3*

Flowmeter 4*

0.1-1.00.5–3.50.5–3.5

0.15–0.65

0.25–2.50.1–1.0-

2-70.5–3.50.5–3.5

0.15–0.65

0.5–3.50.1–1.0-

0.5 – 3.50.1 – 1.0-

0.1–1.00.01–0.020.25–2.5

0.5–6.3

0.4 – 40.4  – 4-

1.6- 160.6- 61.0 – 10

2.5 – 25

Fuel Inlet Pressure, MPa 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Power Consumption, kW 2.7 15 18 36 45 45 55 100
Delivery head, m, max 10 10 10 10 10 10 10 10
Dimensions, mmLength**Width**Height** 5003001300 5005001500 5006001500 70012001550 70012001550 100015001850 200014002200 250018002500
Weight, kg 130 330 370 450 550 750 1450 2200

* – flow meters range to be advised depending on finish product recipe

** – dimensions can vary depending on customized components (please fill in our questionnaire before ordering)
