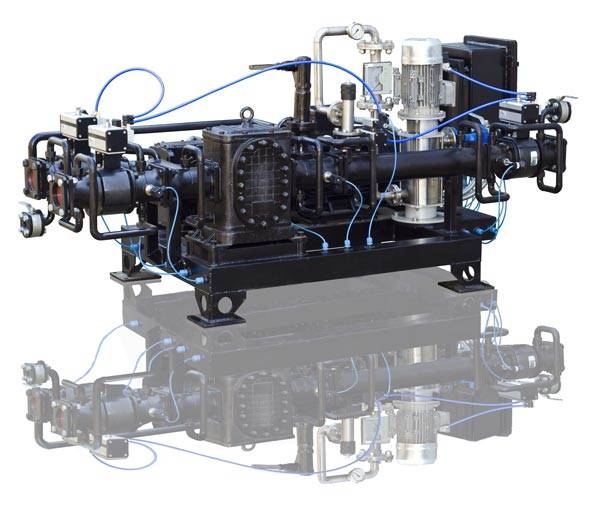

Low-viscous, viscous and high-viscous fuel, low-viscous residual oil blending system USB-12/3

This system is a monoblock unit with a remote control system. The Unit is recommended to apply mainly at the thermal power stations as it has been installed the remote control system supported by controller – this system can be easily adapted in common factory control system. The system of automatic batching of components is realized in this unit.

Main purpose of the USB system is its application for nonchemical fuel treatment and liquid fuels economizing.

Features:

– BLACK OIL, DIESEL FURNACE OIL, GASOLINE SAVING;

– WATER-FUEL EMULSIONS PRODUCTION;

– BURNING OF BLACK OIL WITH WATER;

– BURNING OF CHEMICAL RECOVERY BLACK OIL;

– MIXING OF MULTICOMPONENT FUELS;

– MIXING OF BIODIESEL WITH OTHER FUEL COMPONENTS;

– PRELIMINARY OIL PROCESSING IN ORDER TO REDUCE THE TRANSPORTTATION COSTS;

– INCREASING OF OUTPUT FLUIDITY OF THE LIGHT PETROCHEMICALS DURING OIL REFINING;

Unit is equipped with a heating system and ultra precise components batching system allowing to change dosage of components continuously «ONLINE».

Specifications

Parameters USB5/5 USB18/3 USB18/5 USB40/3 USB60/3 USB60/5 USB100/3 USB200/5
Capacity, m³/h 5 18 18 40 60 60 100 200
Number of additives 2-5 2-3 2-5 2-3 2-3 2-5 2-3 2-5
Main component consumption, m³/h 3.5 11 11.5 30 (37) 50 (57) 50 100 200
Additive volume, m³/hFlowmeter 1*

Flowmeter 2*

Flowmeter 3*

Flowmeter 4*

0.1-1.0

0.5–3.5

0.5–3.5

0.15–0.65

0.25–2.5

0.1–1.0

2-7

0.5–3.5

0.5–3.5

0.15–0.65

0.5–3.5

0.1–1.0

0.5 – 3.5

0.1 – 1.0

0.1–1.0

0.01–0.02

0.25–2.5

0.5–6.3

0.4 – 4

0.4  – 4

1.6- 16

0.6- 6

1.0 – 10

2.5 – 25

Fuel Inlet Pressure, MPa 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Power Consumption, kW 2.7 15 18 36 45 45 55 100
Delivery head, m, max 10 10 10 10 10 10 10 10
Dimensions, mmLength**

Width**

Height**

500

300

1300

500

500

1500

500

600

1500

700

1200

1550

700

1200

1550

1000

1500

1850

2000

1400

2200

2500

1800

2500

Weight, kg 130 330 370 450 550 750 1450 2200

* – flow meters range to be advised depending on finish product recipe

** – dimensions can vary depending on customized components (please fill in our questionnaire before ordering)
