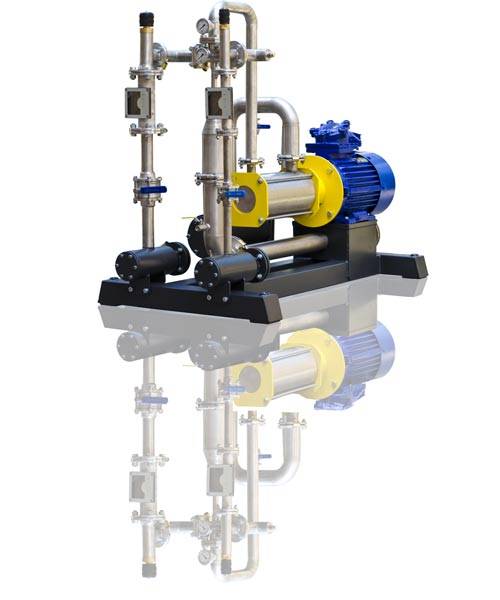

Gasoline, diesel fuel blending system USB-18/3

Gasoline, diesel fuel blending system USB-18/3

This unit is able to mix simultaneously up to 2-3 components that in turn is reasonable both for producing of high octane gasolines on the basis of bioethanol and for producing  of winter and arctic fuels by introduction of pour-point depressants and antigel additives.

The present unit has perfectly proved both in conditions of the Far North and of Central Asia.

Fuel blending machine is actual for application at the small capacity enterprises, the Unit capacity on end-product is from 13 till 18 m3/hour. The Unit can be applied as for fuel processing during storage and for manufacture of the new fuels on refineries or petroleum storage depots.

Specifications

Parameters USB5/5 USB18/3 USB18/5 USB40/3 USB60/3 USB60/5 USB100/3 USB200/5
Capacity, m³/h 5 18 18 40 60 60 100 200
Number of additives 2-5 2-3 2-5 2-3 2-3 2-5 2-3 2-5
Main component consumption, m³/h 3.5 11 11.5 30 (37) 50 (57) 50 100 200
Additive volume, m³/hFlowmeter 1*Flowmeter 2*

Flowmeter 3*

Flowmeter 4*

0.1-1.00.5–3.5

0.5–3.5

0.15–0.65

0.25–2.50.1–1.0

2-70.5–3.5

0.5–3.5

0.15–0.65

0.5–3.50.1–1.0

0.5 – 3.50.1 – 1.0

0.1–1.00.01–0.02

0.25–2.5

0.5–6.3

0.4 – 40.4  – 4

1.6- 160.6- 6

1.0 – 10

2.5 – 25

Fuel Inlet Pressure, MPa 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Power Consumption, kW 2.7 15 18 36 45 45 55 100
Delivery head, m, max 10 10 10 10 10 10 10 10
Dimensions, mmLength**Width**

Height**

500300

1300

500500

1500

500600

1500

7001200

1550

7001200

1550

10001500

1850

20001400

2200

25001800

2500

Weight, kg 130 330 370 450 550 750 1450 2200

* – flow meters range to be advised depending on finish product recipe

** – dimensions can vary depending on customized components (please fill in our questionnaire before ordering)
