LIQUID/FUEL BLENDING SYSTEMS USB

LIQUID/FUEL BLENDING SYSTEMS USB

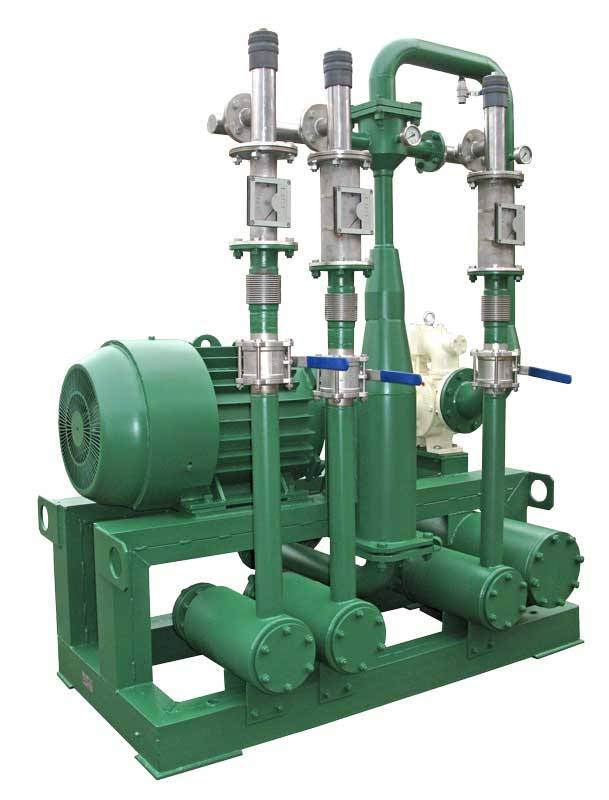

GlobeCore GmbH  Liquid/Fuel Blending Systems USB are designed to blend up to five separate liquid

components  at rates  ranging from 18 m³  to 200 m³ per hour, particularly low-octane gasoline with high-oxygene additives, to prepare multicomponent motor fuel blends. These can include biodiesel blends, bioethanol and other fuels blends.

Modern hydrodynamic stream fuel blending plants have proven themselves to be an economic, accurate and steady solution for high-quality motor fuel blend production with optimal prime cost. In comparison with existing technology of fuel blending in blending vessels, the economy and increase of production profit margin can result in return on investment of 60 % a year.

Liquid blending process occurs in the hydraulic blender. This process involves supplying of all components simultaneously according to the recipe. Finished product is delivered to storage tanks. The advantages of such blending technology are easy and accurate component dosage control, substantial reduction of fuel blending process time, no need of batching tanks for finished product homogenization. In the course of the fuel blending process in the stream mixer the consumption of each component is continuously controlled to provide finished product with steady quality parameters, according to the blending recipe. The fuel blend, obtained from the stream mixer, is homogenic and its component composition is in exact match with the recipe.

Specifications

Parameters USB5/5 USB18/3 USB18/5 USB40/3 USB60/3 USB60/5 USB100/3 USB200/5
Capacity, m³/h 5 18 18 40 60 60 100 200
Number of additives 2-5 2-3 2-5 2-3 2-3 2-5 2-3 2-5
Main component consumption, m³/h 3.5 11 11.5 30 (37) 50 (57) 50 100 200
Additive volume, m³/hFlowmeter 1*Flowmeter 2*Flowmeter 3*Flowmeter 4* 0.1-1.00.5–3.50.5–3.50.15–0.65 0.25–2.50.1–1.0– 2-70.5–3.50.5–3.50.15–0.65 0.5–3.50.1–1.0– 0.5 – 3.50.1 – 1.0– 0.1–1.00.01–0.020.25–2.50.5–6.3 0.4 – 40.4  – 4– 1.6- 160.6- 61.0 – 102.5 – 25
Fuel Inlet Pressure, MPa 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Power Consumption, kW 2.7 15 18 36 45 45 55 100
Delivery head, m, max 10 10 10 10 10 10 10 10
Dimensions, mmLength**Width**Height** 5003001300 5005001500 5006001500 70012001550 70012001550 100015001850 200014002200 250018002500
Weight, kg 130 330 370 450 550 750 1450 2200

* – flow meters range to be advised depending on finish product recipe

** – dimensions can vary depending on customized components (please fill in our questionnaire before ordering)
